So far, your implementation of VectorGraphics engine followed the SVG
specification. I discovered that when I implemented the DrGeoSVGCanvas
to render a DrGeo sketch to a SVG file.

Particularly in the style of the element, the dashArray attribute was of
same nature in VG and SVG:

  1
  2
  3
  4
  5
  6
  7
  8
  9
10
11
12
13
14
15
16
17



DrGSVGCanvas>>styleOf: element StrokeWidth: strokeWidth color: strokeColor strokeDashArray: sda fillColor: fillColor
"
Apply style to a given element (node)
"
	strokeWidth ifNotNil: [element attributeAt: #'stroke-width' put: strokeWidth asString].
	strokeColor ifNotNil: [	element attributeAt: #stroke put:
		(strokeColor isTransparent ifTrue: ['transparent']ifFalse:	strokeColor hexHtml)].
	sda ifNotNil: [
		element
			attributeAt: #'stroke-dasharray'
			put: (String streamContents: [:s | sda do: [:e | s store: e]separatedBy: [s space]])].
" sdao ifNotNil: [element attributeAt: #'stroke-dashoffset' put: sdao
asString]."
	fillColor
		ifNotNil: [
			element attributeAt: #fill put: fillColor hexHtml.
			fillColor isOpaque ifFalse: [element attributeAt: #'fill-opacity' put: fillColor alpha asString] ]
		ifNil: [element attributeAt: #fill put: 'none']



 From my understanding, now your implementation differs in the way
dashes are represented in SVG. It is just an observation not a complain.
To minimize my code change, I implemented a backward compatible method
in AbstractVectorCanvas, it converts my dash (composed of only two
numbers) from the former format to your new format:

  1
  2
  3
  4
  5
  6
  7
  8
  9
10
11
12
13
14
15
16



strokeWidth: borderWidth color: borderColor strokeDashArray: dashedBorder do: pathCommandsBlock
"
dashedBorder = array of 2 elements, for example #(1 6), one pixel on, 6 off
"
	dashedBorder
		ifNil: [
			self
			strokeWidth: borderWidth
			color:  borderColor
			do: pathCommandsBlock]
		ifNotNil: [
			self
			strokeWidth: borderWidth
			color:  borderColor
			dashedStrokeBits:  (2 raisedTo: dashedBorder first)- 1  << dashedBorder second
			do: pathCommandsBlock ]



It works pretty well and keep DrGSVGCavnas working. It does not work
well for my Locus Morph though. A locus is a collection of points

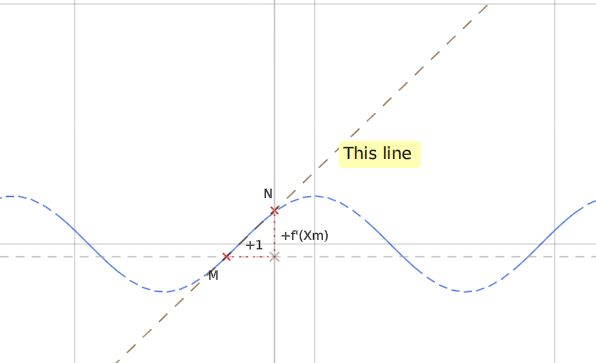

connected by line. See the below the blue sinus curve should be dashed.
Of course it is related to the way the locus sample are computed, some
samples may be too close to each other to see the dash painted.
*Surprisingly for me, this problem was not present in your Smalltalk
previous implementation of dash. *

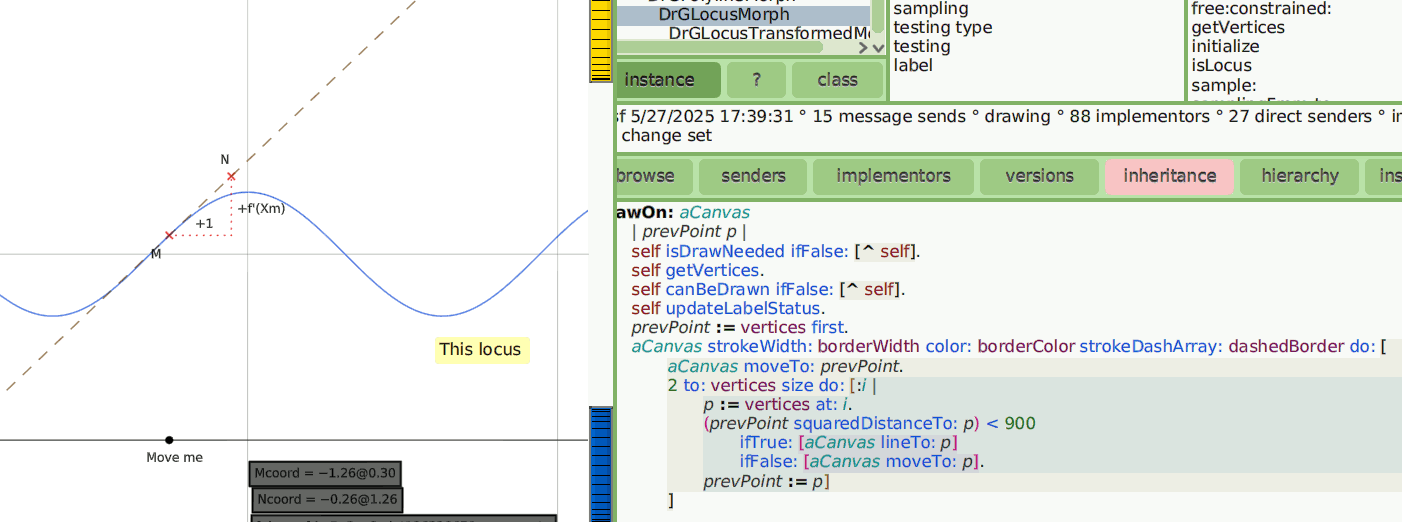

When playing a bit with the Morph Locus parameters to alter the sampling
of the locus, we can reveal what is going on, see below.
All this is not a bug in your implementation, but your previous
implementation could hide this problem related to sampling at a dynamic
rate, and it was pretty cool.
