[Cuis-dev] Changes to unwind logic and termination
Jaromir Matas
mail at jaromir.net
Thu Nov 20 05:37:39 PST 2025
Hi Juan,
On Nov 20 2025, at 1:25 pm, Juan Vuletich via Cuis-dev
<cuis-dev at lists.cuis.st> wrote:
> Hi Jaromir,
>
> On 2025-11-20 5:33 AM, Jaromir Matas via Cuis-dev wrote:
>> Hi Juan,
>>
>> I've patched the previous test to avoid the VM crash. Indeed the problem
>> was it forced the VM resume "inside" a quick return.
>
> This is great! Is it ready to add to the Tests package?
>
>> Unlike Squeak, you
>> allowed the Debugger to step into quick returns.
> Yes. This is good for consistency. And it was done by folks doing TDD
> +
> coding in the debugger. They found it annoying that you could not step
> into a quick return method, edit it in the debugger, save and restart.
> I
> believe the main authors were Francisco Javier Gelatti and Hernán
> Wilkinson, during the FAST 2024 conference at Mar del Plata.
Yes, it's great!
>> What still confuses me
>> is when you debug
>>
>> `true not`
>>
>> then step into #not and explore thisContext: what's the meaning of the
>> pc counter relative to the method? It doesn't point to an existing
>> bytecode (there's none actually) - is it ok? Why 25? It's confusing...
>
> Well, it is a primitive method, the first (and only) bytecode there is
> the 3 byte "Call Primitive" bytecode, at position 25. Maybe some
> clarification is needed somewhere.
>

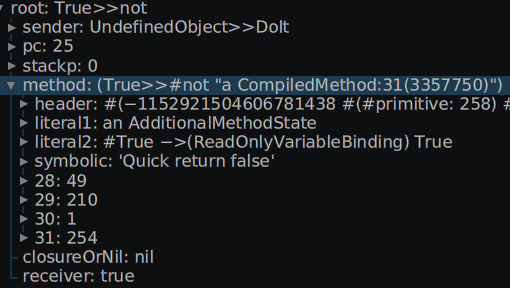

It's clear now, I could have known better though :) I've enclosed the
explorer screenshot I found confusing/inconsistent. The pc says 25 but
there's no bytecode 25; they start at 28. Of course the last literal is
literal2 so the next must refer to the three byte bytecode conveniently
translated to "symbolic: Quick return false" but it's quite a lot to
realize without prior experience ;o
>>
>> Anyway, the test now passes.
>
> The test looks perfect to me.
>
All credits go to Christoph!
>> If you remove the line:
>>
>> `ctx tempAt: 2 put: #unwindComplete`
>>
>> from #unwindAndResume:evaluating:, the test will fail because of the
>> suspension point on the backward branch of the #whileFalse loop,
>> demonstrating the reason for adding the additional #ensure:
>> completionStatus variable value.
>>
>> Best regards,
>> Jaromir
>
> Yes. This is really great stuff. I'll just push the test now.
>
Thank you.
best,
Jaromir
> Thank you!
>
>> On Nov 19 2025, at 8:19 pm, Jaromir Matas via Cuis-dev
>> <cuis-dev at lists.cuis.st> wrote:
>>
>>> Hi Juan,
>>>
>>> I wanted to add an interesting test by Christoph testing that
>>> termination works correctly at each step of the computation. This was
>>> the test that discovered some treacherous suspension points in the
>>> unwind mechanism and the motivation for adding the third value to the
>>> #ensure: complete temp var.
>>>
>>> However, while it works flawlessly in Squeak, it crashes the VM in Cuis
>>> immediately. Both for the new VM you've just uploaded as well as for the
>>> previous one. And also regardless whether the latest unwind update
>>> you've just integrated is applied.
>>>
>>> Please see for yourself: Using the latest image (new VM, updated unwind)
>>> the crash happens at step 526. I'm enclosing the test with a halt at
>>> this step for you to explore the process suspendeContext: you see the
>>> problem happens when terminating inside `true not` evaluation which
>>> is a
>>> quick return. I'm not familiar with how quick return is supposed to work
>>> precisely here but it looks suspicious to me the Debugger shows pc = 25
>>> but the method code has no such instruction. In Squeak this doesn't seem
>>> to be a problem but I'm still not sure where exactly the problem is.
>>> Maybe, but I'm speculating here wildly, it has something to do with the
>>> fact that the quick return may not be a VM resumption point and in real
>>> time (not simulation) the computation would never be stopped (preempted)
>>> at this particular point, i.e. "inside a quick return", and hence
>>> the VM
>>> crashes when forced to resume in such an undefined point.
>>>
>>> Question: does the quick return evaluate in a separate frame (context)
>>> or is it inlined or executed similarly like a primitive?
>>>
>>> In an older image the problem happens at a different step but always
>>> when inside True>>#not.
>>>
>>> I'm hoping you might spot a problem right away being familiar with quick
>>> returns :)
>>>
>>> Best,
>>> Jaromir
>>>
>>> On Nov 19 2025, at 1:18 pm, Juan Vuletich via Cuis-dev
>>> <cuis-dev at lists.cuis.st> wrote:
>>>
>>>> Hi Jaromir,
>>>>
>>>> On 2025-11-19 6:15 AM, Jaromir Matas via Cuis-dev wrote:
>>>>
>>>>> Hi Juan,
>>>>>
>>>>> On Nov 18 2025, at 10:33 pm, Juan Vuletich via Cuis-dev
>>>>> <cuis-dev at lists.cuis.st> wrote:
>>>>>
>>>>>
>>>>>
>>>>>> Hi Jaromir,
>>>>>>
>>>>>> Apologies for the delayed answer. We were midst the FAST Smalltalks
>>>>>>
>>>>>> conference in Argentina and a wonderful course on VM internals by
>>>>>> Eliot
>>>>>>
>>>>> What a treat! I just regret Buenos Aires is so far away from
>>>>> Prague :)
>>>>>
>>>> Well, we need to find out how to make it possible for you to join us
>>>> next year! You'd have a great time. I promise. BTW do you usually
>>>> attend ESUG conference? Maybe we can meet there next year too.
>>>>
>>>>
>>>>
>>>>
>>>>> I know Eliot had a presentation at Smalltalks 2025; any chance the
>>>>> presentation was recorded?
>>>> Yes. There were several other really good presentations, and all of
>>>> them were recorded. They will be published on YouTube, like those of
>>>> rpevious years.
>>>>
>>>>
>>>>
>>>>
>>>>>
>>>>>
>>>>>> and I didn't have any brains left for anything else for a while.
>>>>>>
>>>>>> I just reviewed your changes. These are welcome and important enhancements.
>>>>>>
>>>>>> Thank you for keeping us updated and sinc'ed with Squeak! This is
>>>>>> most
>>>>>> valuable!
>>>>>>
>>>>>>
>>>>> All pleasure's mine; Cuis is an invaluable source of feedback and
>>>>> inspiration. Thank you!
>>>>>
>>>>>
>>>>>
>>>>>> When I loaded your changes, I found that in #unwindTo:safely: the
>>>>>> old
>>>>>> version had a guard against (ctx tempAt: 1) being nil. Your new code
>>>>>>
>>>>>> doesn't include that guard, and #testTerminateWithNiledUnwindBlock
>>>>>> will
>>>>>> fail. You can also see this with your 'Workspace example' included
>>>>>> at
>>>>>> that test:
>>>>>>
>>>>>> Workspace example:
>>>>>> p := [[Processor activeProcess suspend] ensure: nil] newProcess.
>>>>>> p resume.
>>>>>> [p terminate] fork
>>>>>>
>>>>>> I found that adding a simple #ifNotNil: appears to solve the issue.
>>>>>>
>>>>>>
>>>>> I originally added the nil check and the test but we have
>>>>> discussed this
>>>>> issue with Christoph Thiede recently and decided to remove the check.
>>>>> There's no point to guard against nil in place of an unwind block as
>>>>> it's apparently just a user error and should show up. Only a block
>>>>> should be allowed as an unwind block. Potentially, the nil check could
>>>>> even obscure a user's error and make debugging harder (perhaps). This
>>>>> way the user should be able more quickly identify the error in the Debugger.
>>>>>
>>>>> On the other hand we have a slight inconsistency here: if you run
>>>>>
>>>>> [] ensure: nil
>>>>>
>>>>> nothing happens, because we have `Object >> #value` returning self :)
>>>>>
>>>>>
>>>>> So frankly, I don't have a strong opinion here. A guard is ok too
>>>>> or you
>>>>> could even use the nil check to raise an explicit error if you
>>>>> prefer.
>>>>>
>>>>> In such case one should probably add the same guard to
>>>>> #unwindAndResume:evaluating: too.
>>>> I think the analysis you did with Christoph makes total sense. It is
>>>> better this way. So, I just pushed your code.
>>>>
>>>>
>>>>> I'm surprised I forgot to add the test to Squeak :) So depending
>>>>> on your
>>>>> decision it might want to be moved to expected failures.
>>>> I just removed that test, and replaced it with a possibly redundant
>>>> #testTerminateWithEmptyUnwindBlock, just to document all this a bit.
>>>>
>>>>
>>>>>
>>>>> Thanks again and best regards,
>>>>> Jaromir
>>>>>
>>>> Thank you. Cheers!
>>>>
>>>> --
>>>> Juan Vuletich
>>>> www.cuis.st
>>>> github.com/jvuletich
>>>> researchgate.net/profile/Juan-Vuletich
>>>> independent.academia.edu/JuanVuletich
>>>> patents.justia.com/inventor/juan-manuel-vuletich
>>>> --
>>>>
>>>> Cuis-dev mailing list
>>>>
>>>> Cuis-dev at lists.cuis.st
>>>>
>>>> https://lists.cuis.st/mailman/listinfo/cuis-dev--
>>> Cuis-dev mailing list
>>> Cuis-dev at lists.cuis.st
>>> https://lists.cuis.st/mailman/listinfo/cuis-dev
>>>
> --
> Juan Vuletich
> www.cuis.st
> github.com/jvuletich
> researchgate.net/profile/Juan-Vuletich
> independent.academia.edu/JuanVuletich
> patents.justia.com/inventor/juan-manuel-vuletich
>
> --
> Cuis-dev mailing list
> Cuis-dev at lists.cuis.st
> https://lists.cuis.st/mailman/listinfo/cuis-dev
>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Pasted File.png
Type: image/png
Size: 43740 bytes
Desc: not available
URL: <http://lists.cuis.st/mailman/archives/cuis-dev/attachments/20251120/d5d4c6b1/attachment-0001.png>
