[Cuis-dev] Jitter source during benchmarks

[Nicolás Papagna Maldonado]

Hi folks,

I'm in the process of doing performance benchmarks of my Code Coverage tool
for my thesis, and I've encountered something interesting while measuring
the test execution times of the Aconcagua package.

*Observation:*

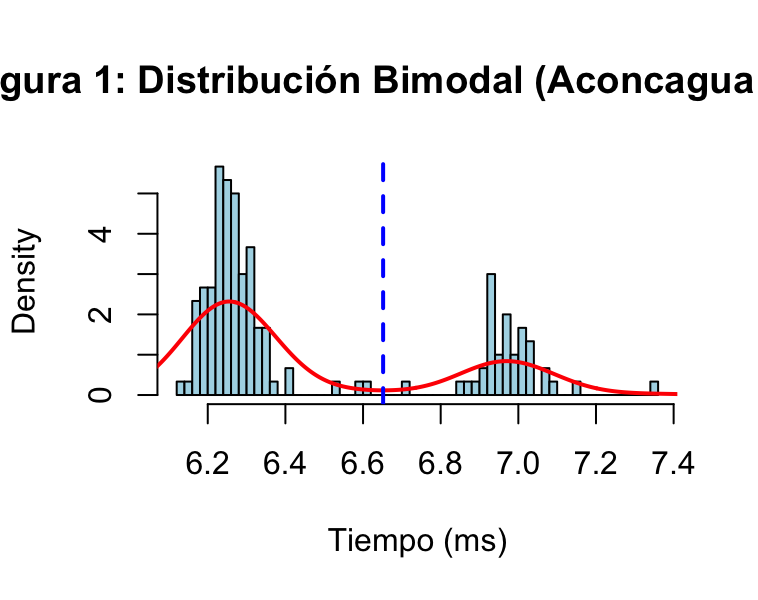

When running the Aconcagua test suite 150 times in a clean image, the
execution times are not normally distributed. Instead, they fall into two
distinct "modes":

[image: image.png]
A Base Mode (~6.28 ms): Representing roughly 72% of the iterations.
A Spike Mode (~7.0 ms): Representing roughly 28% of the iterations.

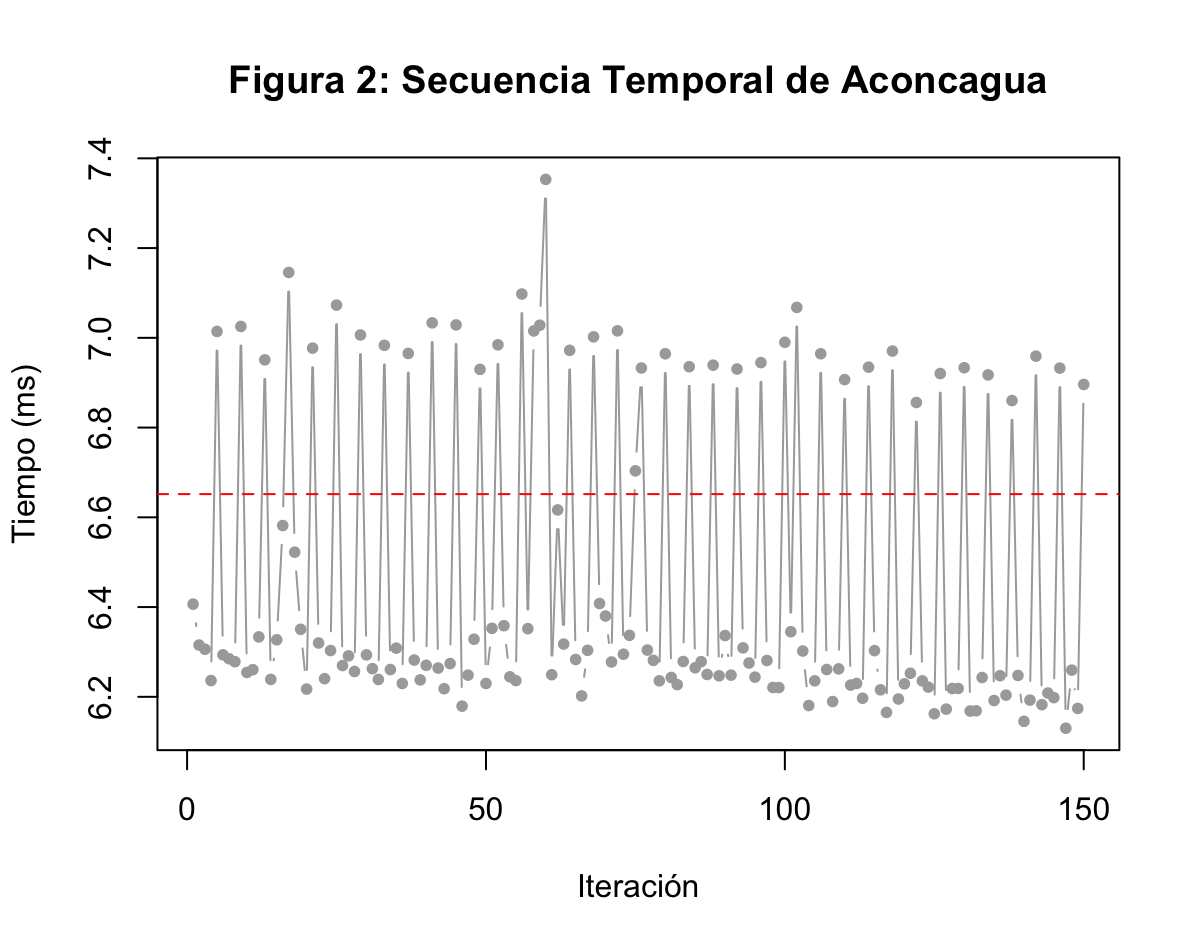

As the next plot shows, the spikes are not random; they seem to be kind-of
deterministic (roughly every 4th iteration).
I think these perturbations are visible because I'm taking very small
measurements (~6.28 ms).
[image: image.png]

*Question:*
I am trying to isolate whether this "heartbeat" is originating from within
the Cuis image or the VM/OS layer (I'm thinking of VM timer/events, maybe
UI timers?)
Does anyone know what could be causing this?
Are there any known events that run at this particular frequency?

I repeated the experiment a couple of times and the perturbations are
consistent (in terms of ms and frequency).

*Methodology:*

   - Measurements were taken in batches of 50 test runs.
   - Each batch was run in a fresh image, waiting 2 minutes for the VM to
   stabilize Cuis code.
   - 10 warmup runs were done and discarded before measuring test run times.
   - Measurements were taken using Time primHighResClock and converted to
   ms using Time highResTimerTicksPerMillisecond.
   - VM stats were collected before and after measurements. A full GC was
   run before taking measurements.
   - No GC activity was observed while measuring the tests run (VM stats
   report no full nor incremental GCs).
   - The test suite was created and run from a workspace

*Cuis environment:*

   - Cuis Smalltalk commit:
   https://github.com/Cuis-Smalltalk/Cuis-Smalltalk-Dev/commit/b221722348cc46ebb9f5d9f3a057a3f361aa3d55
   - Code Coverage commit:
   https://github.com/npapagna/cuis-code-coverage/commit/db19de02250a3fd50dfc4e0b4d0893b656e31e9b
   - Aconcagua commit:
   https://github.com/Cuis-Smalltalk/Measures/commit/05aa02aada64f7b64898a5e1452ae8fb76f79427

*Machine environment:*

   - Model Name: MacBook Pro
   - Model Identifier: MacBookPro18,3
   - Model Number: MKGR3LL/A
   - Chip: Apple M1 Pro
   - Total Number of Cores: 8 (6 Performance and 2 Efficiency)
   - Memory: 16 GB
   - System Firmware Version: 13822.81.10
   - OS Loader Version: 13822.81.102
   - APPLE SSD AP0512R (NVMe, avg read 5671 MB/s, avg write 5670 MB/s)
   - macOs 26.3 (25D125)
   - A dedicated fresh profile was created for the benchmarks (indexing,
   time machine, screen lock/saver, display shutdown, bluetooth and wifi
   disabled).

Thanks in advance,
Nico PM
